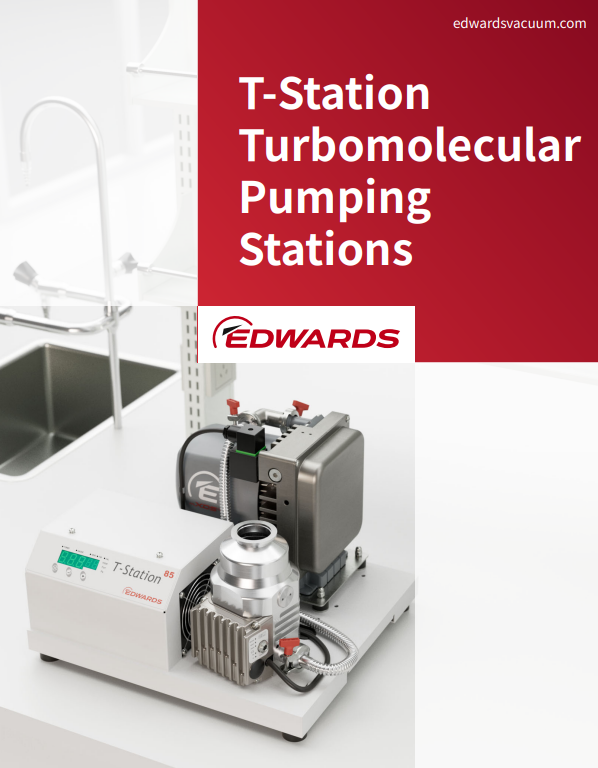

nEXT T-Station

Our range of T-Station pumping systems combines a turbomolecular pump, a choice of backing pumps, and a simple controller, delivering pumping speeds of 47 to 300 I/s, ready-to-pump straight from the box.

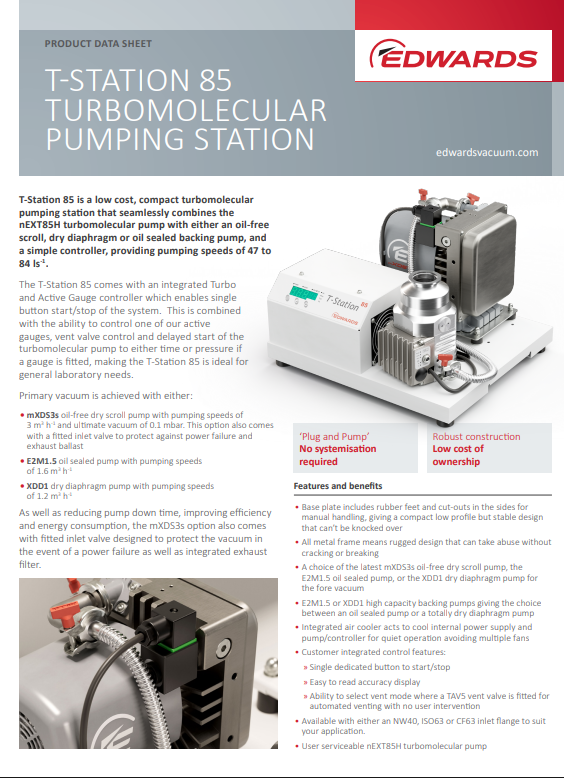

The T-Station 85 comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. This is combined with the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, making the T-Station 85 is ideal for general laboratory needs.

Features & Benefits

Base plate includes rubber feet and cut-outs in the sides for manual handling, giving a compact low profile but stable design that can’t be knocked over
A choice of the latest mXDS3s oil-free dry scroll pump, the E2M1.5 oil sealed pump, or the XDD1 dry diaphragm pump for the fore vacuum
Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans
Customer integrated control features
Available with either an NW40, ISO63 or CF63 inlet flange to suit
User serviceable nEXT85H turbomolecular pump

Applications

Academic research laboratories
R&D
Universities
Surface physics

T-Station 300 turbomolecular pumping station builds on the existing popular T-Station 85 platform, by replacing the nEXT85H turbomolecular pump with the nEXT300 turbomolecular pump we have extended our portfolio and are providing a solution for customers and applications that require a higher pumping speed up to 300 ls-1.

Features & Benefits

Providing a solution for customers and applications that require higher pumping speeds up to 300 ls-1.
Cost effective, compact and modular.
Simple user-friendly plug and pump solution with no systemisation and no additional air cooling required, supplied fully assembled and ready to go for quick and easy operation.
Designed to be compact with a low profile, the all metal frame is able to withstand abuse without cracking or breaking and the base plate comes with rubber feet for extra stability.
Easy user serviceable pumps make this great for low cost of ownership.

Applications
